DipTrace Schematic — Button-ESP-MCP-V1.0-COLOR
8 Кнопоок MCP23008
backlog sensor29 0,2,1; sensor29 1,2,1; sensor29 2,2,1; sensor29 3,2,1
backlog sensor29 4,2,1; sensor29 5,2,1; sensor29 6,2,1; sensor29 7,2,1

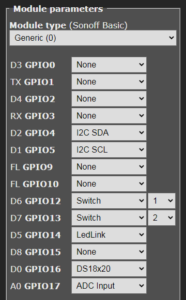

ДВЕ Кнопки на портах GPIO12 и GPIO13
SwitchMode1 1
SwitchMode2 1
Rule1 ON switch1#state DO publish stat/KnopkaRomik/RESULT {«SWITCH1»:%value%} ENDON
Rule2 ON switch2#state DO publish stat/KnopkaRomik/RESULT {«SWITCH2»:%value%} ENDON
Backlog Rule1 1; Rule2 1
