WT32-ETH01, маленькая плата c ESP32 + Ethernet – Отличное описание.
Схема WT32_ETH01_V2.schematic

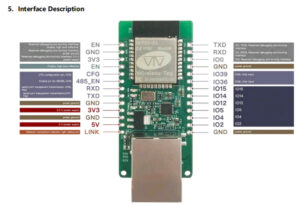

Описание WT32-ETH01

Прошивка Tasmota: https://github.com/Jason2866/Tasmota-specials/tree/firmware/firmware/tasmota32

esptool.py –chip esp32 –port /dev/ttyUSB0 –baud 921600 –before default_reset –after hard_reset write_flash -z –flash_mode dout –flash_freq 40m –flash_size detect 0x1000 bootloader_dout_40m.bin 0x8000 partitions.bin 0xe000 boot_app0.bin 0x10000 tasmota32-ethernet.bin

Активировать Ethernet:

backlog template {"NAME":"WT32-ETH01","GPIO":[0,3200,1,3232,1,1,0,0,1,0,1,1,5536,1,5600,0,0,0,0,5568,0,0,0,0,0,0,0,0,1,1,0,1,1,0,0,1],"FLAG":0,"BASE":1}; EthAddress 1; EthType 0; EthClockMode 0; module 0;
